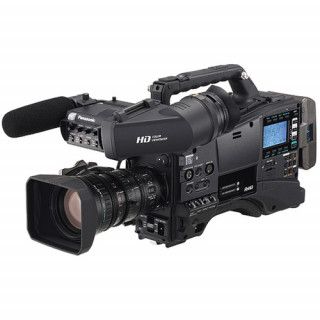

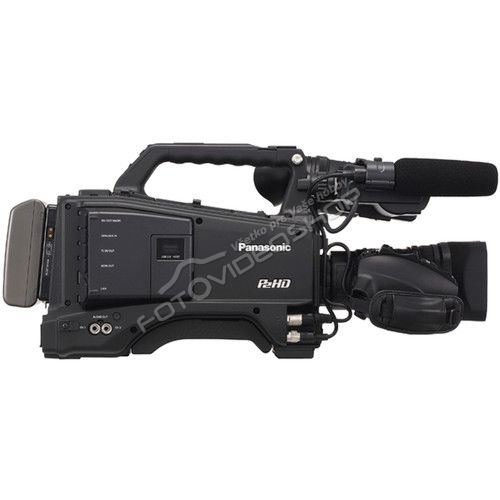

Panasonic AG-HPX610EJ body

Obj. čislo: Panasonic AG-HPX610EJ body
Výrobca: Panasonic

Profesionálna videokamera AG-HPX610EJ so záznamom AVC-Intra 10-bit 4:2:2 a veľkým snímacím čipom 2/3" MOS.

Dostupnosť: Info v obchode

15 240 €

377 190 Kč

bez DPH: 12 700 €

bez DPH: 314 325 Kč

Porovnať
Sledovať
Otázka

Popis
Špecifikácia

Panasonic AG-HPX610EJ (PROFESIONÁLNY PRODUKT)

Čo nájdete v balení ?

1x videokamera Panasonic AG-HPX610 (telo bez objektívu)
1x farebný hľadáčik AG-CVF15G HD
1x ramenný popruh
1x krytka tela
1x CD-ROM

Panasonic AG-HPX610EJ - vlastnosti:

Kompenzácia chromatickej aberácie
Rozsiahle asistenčné funkcie (napr. Focus Assist, Vektroskop...)
2/3 bajonet pre upevnenie objektívov
AG-HPX610 je najľahšia kamera vo svojej triede - iba 2,8 kg
2/3 MOS senzor s citlivosťou F13 v 1080i/50 a nízkym šumom S/N 59 dB
v základe je vybavená kodekmi AVC-Intra 100/50, DVCPRO HD, DVCPRO 50, DVCPRO a DV
prepínateľná 50/60 Hz

Panasonic AG-HPX610EJ - špecifikácie:

Sensor	1 x 2/3" MOS
Lens Mount	2/3" bayonet type (B4)
Built-in Filters	4 position ND (Clear, 1/4, 1/16, 1/64)
Gain	-3, 0, 3, 6, 9, 12, 18 dB (18 dB: USER SW allocation) When SHOOTING MODE is NORMAL on SYSTEM SETUP MENU -3 dB setting is treated as 0 dB and 18 dB setting can not be active.
Color Temperature	ATW, ATW LOCK, Ach, Bch, Preset 3200 K/Preset 5600 K/VAR (2400 - 9900 K)
Shutter Speed	Preset Shutter Speeds in 59.94 Hz mode 60i/60p mode: 1/60 (OFF), 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000 sec. 30p mode: 1/30 (OFF), 1/50, 1/60, 1/120, 1/250, 1/500, 1/1000 sec. 24p mode: 1/24 (OFF), 1/50, 1/60, 1/120, 1/250, 1/500, 1/1000 sec. Preset Shutter Speeds in 50 Hz mode 50i/50p mode: 1/50 (OFF), 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000 sec. 25p mode: 1/25 (OFF), 1/50, 1/60, 1/120, 1/25, 1/500, 1/1000 sec. Slow Shutter Speeds in 59.94 Hz mode 60i/60p mode: 1/15, 1/30 sec. 30p mode: 1/15 sec. 24p mode: 1/12 sec. Slow Shutter Speeds in 50 Hz mode 50i/50p mode: 1/12.5, 1/25 sec. 25p mode: 1/12.5 sec. Syncro Scan Shutter Speeds in 59.94 Hz mode 60i/60p mode: 1/60.0 to 1/249.8 sec. 30p mode: 1/30.0 to 1/249.8 sec. 24p mode: 1/24.0 to 1/249.8sec. Syncro Scan Shutter Speeds in 50 Hz mode 50i/50p mode: 1/50.0 to 1/250.0 sec. 25p mode: 1/25.0 to 1/250.0 sec.
Shutter Angle Settings	SCENE FILE VFR = OFF 3 ~ 360° in 0.5° step select SCENE FILE VFR = ON2 (FRAME RATE 12p or more) 3 ~ 360° in 0.5° step select SCENE FILE VFR = ON2 (Less than FRAME RATE 12p) 3 ~ 22.5° in 0.5° step select 45, 90, 180, 360°
Frame Rates	Variable frame rate recording requires the AG-SFU602 upgrade software key Frame rates in 59.94 Hz mode 1080: 1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 24, 25, 26, 27, 28, 30fps in 17 steps 720: 1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 24, 25, 26, 27, 28, 30, 32, 34, 36, 40, 44, 48, 54, 60fps in25 steps Frame rates in 50 Hz mode 1080: 1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 23, 24, 25fps in 14 steps 720: 1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 23, 24, 25, 26, 27, 28, 30, 32, 34, 37, 42, 45, 48, 50fps in 25 steps
Sensitivity	When SHOOTING MODE is LOW LIGHT on SYSTEM SETUP MENU: F12 (2000 lx, 3200K, 89.9% reflect, 1080/59.94i) F13 (2000 lx, 3200K, 89.9% reflect, 1080/50i)
Signal to Noise Ratio	59 dB (standard) (When SHOOTING MODE is LOW LIGHT on SYSTEM SETUP MENU)
Digital Zoom	x2, x4
Lens	-

Recording
Recording Media	2 x P2 Media Card Slots
System Formats	1080/59.94i, 1080/23.98PsF2, 720/59.94p, 480/59.94i, 1080/50i, 720/50p, 576/50i
Recording/Playback Time	AVC-Intra100/DVCPRO HD: approx. 64 minutes with 64 GB P2 card AVC-Intra50/DVCPRO 50: approx. 128 minutes with 64 GB P2 card DVCPRO/DV: approx. 256 minutes with 64 GB P2 card
Video Signals	AVC-Intra100/DVCPRO HD Y: 74.1758 MHz, PB/PR: 37.0879 MHz (59.94 Hz) Y: 74.2500 MHz, PB/PR: 37.1250 MHz (50 Hz) DVCPRO 50 Y: 13.5 MHz, P PB/PR: 6.75 MHz DVCPRO Y: 13.5 MHz, PB/PR: 3.375 MHz
Quantizing	AVC-Intra100/AVC-Intra50: 10 bit DVCPRO HD/DVCPRO 50/DVCPRO/DV: 8 bit
Video Compression	AVC-Intra100/AVC-Intra50 MPEG-4 AVC/H.264 Intra Profile DVCPRO HD: DV-Based Compression (SMPTE 370M) DVCPRO 50/DVCPRO: DV-Based Compression (SMPTE 314M) DV: DV Compression (IEC 61834-2)
Audio Signals	AVC-Intra100/AVC-Intra50: 48 kHz, 16 bit, 4CH DVCPRO HD/DVCPRO 50: 48 kHz, 16 bit, 4CH DVCPRO/DV: 48 kHz, 16 bit, 2CH/4CH switchable
Headroom	20 dB/18 dB switching via menu

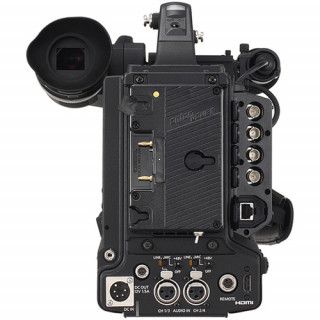

Interface
SDI Output	Connector: BNC (x1) HD-SDI: 0.8 V [p-p], 75 Ω SD-SDI: 0.8 V [p-p], 75 Ω Mounting the optional AG-YA600G HD/SD SDI Input Board enables SDI input
Monitor Output	Connector: BNC (x1), HD/SD-SDI/VBS (Analog Composite switchable) HD SDI: 0.8 V [p-p], 75 ohm SD SDI: 0.8 V [p-p], 75 ohm VBS: 1.0 V [p-p], 75 ohm
HDMI Output	Connector: HDMI TypeA terminal (x1), VIERA Link not supported
Audio Input	Connector: 3 pin XLR (x2) LINE/MIC switchable, high impedance LINE: 0 dBu, MIC:-50/-60 dBu (switchable) MIC +48 V ON/OFF (switchable)
Microphone Input	Connector: 3 pin XLR (x1) +MIC/+48 V (switchable) -40/-50/-60 dBu (switchable)
Wireless	25 pin, D-SUB, -40 dBu 2CH supported
Audio Output	Connector: pin jack (x2), CH1/CH2 Output: 316 mV, 600 Ω
Headphone Output	3.5 mm stereo mini jack (x1)
Speaker	20 mm diameter (x1)
Genlock	BNC (x1) 1.0 V [p-p], 75 Ω
Timecode	Input Connector: BNC (x1), 0.5 V [p-p] tΩ 8V [p-p], 10 kΩ Input Connector: BNC (x1), 2.0 V ±0.5 V [p-p], lΩw impedance (IN/OUT switchable)

Špecifikácia Panasonic AG-HPX610EJ body

Formát snímača	2/3" MOS
displej	LCD 3.45" (920,000 bodov)
typ média	2 x P2 Media Card
rozmery	144 x 267 x 350 mm
hmotnosť	2,8kg (bez batérie a objektívu)
