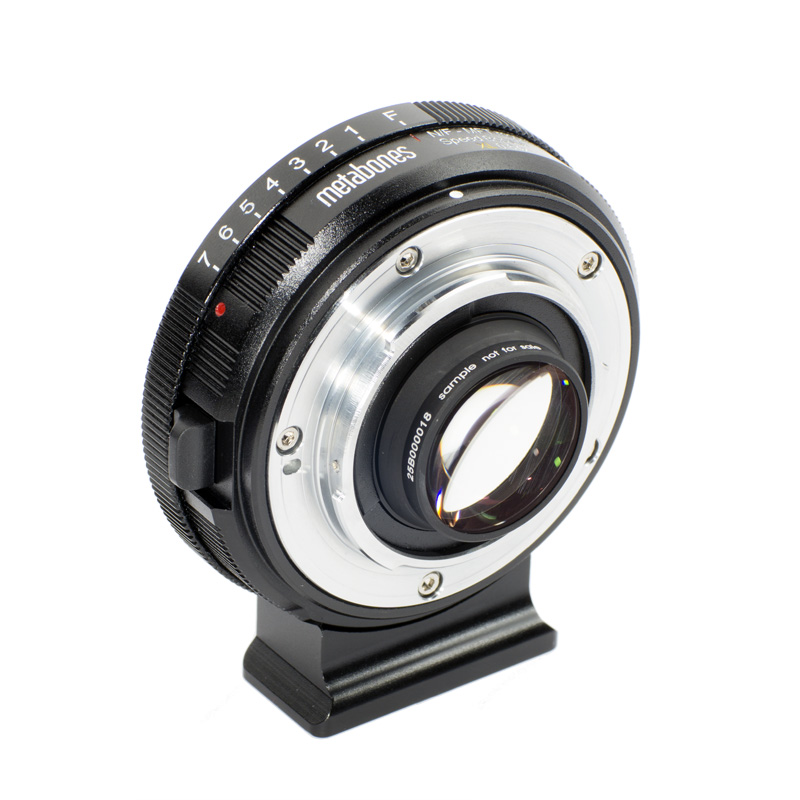

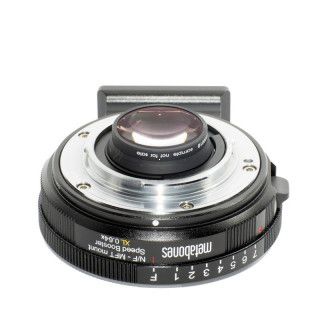

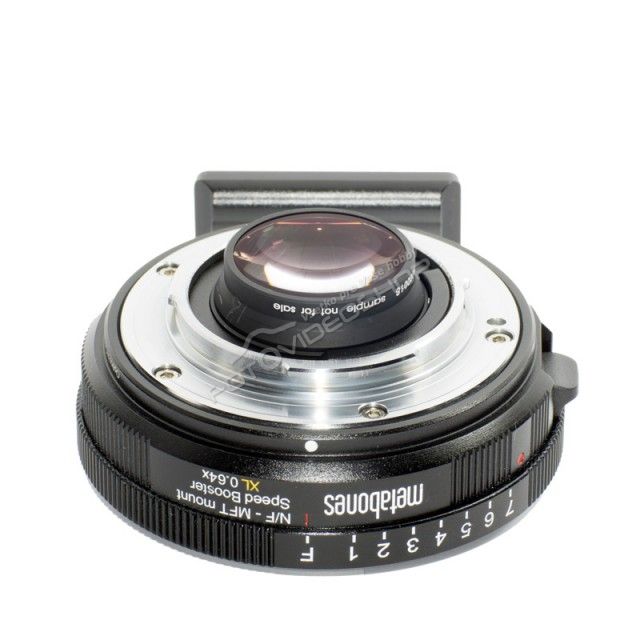

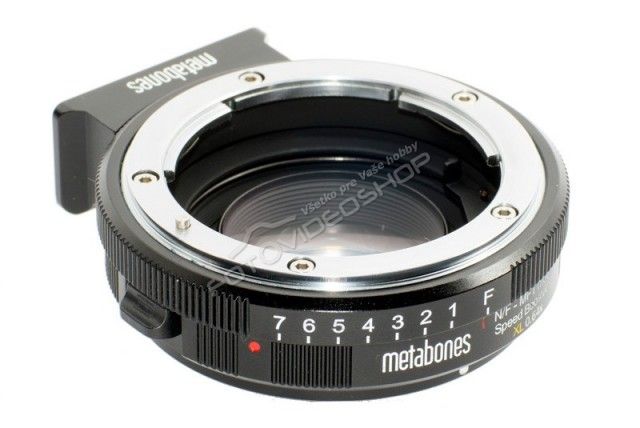

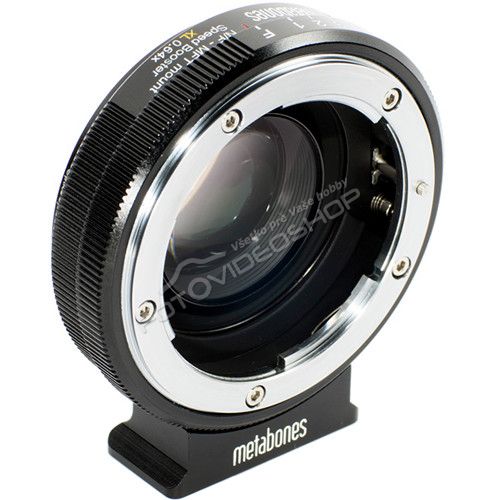

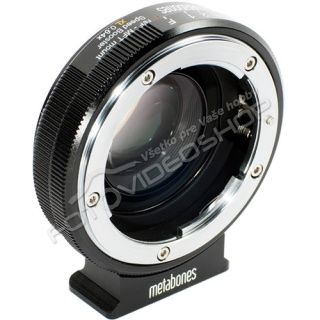

Metabones Nikon G to MFT Speed Booster XL 0.64x

A new Micro-4/3 mount Speed Booster® adapter designed exclusively for the Panasonic GH4 and other selected Micro Four Thirds cameras (refer to the camera compatibility table in the downlowd section), with a magnification of 0.64x.

The Speed Booster XL 0.64x uses an advanced 6-element optical design to achieve extraordinary optical performance at apertures up to an incredible f/0.80, a new record for Micro Four Thirds format.

The new Speed Booster XL 0.64x reduces the full-frame crop factor of the Panasonic GH4 from 2.0x to 1.28x, thus effectively transforming these cameras into APS-H format.

When the GH4 is used in Cinema 4k video mode the horizontal full frame crop factor is reduced from 2.34x to 1.50x, thus effectively transforming the GH4 into a super-35 format 4k cine camera.

In addition, the speed of any attached lens is increased by 11/3 stops, with a maximum output aperture of f/0.80 when an f/1.2 lens is used.

For example, a 50mm f/1.2 becomes a 32mm f/0.80, which is the fastest aperture available for full size Micro Four Thirds format.

Features:

• Compatible to both Nikkor G lens & F lens (include non-AI & AI lens mounts).
• Increase maximum aperture by 11/3 stops
• Increase MTF.
• Makes lens 0.64x wider.
• Build-in electronics to control lens aperture.
• The lens aperture is set by the controls on the camera body.
• Powered by camera body. no external power source required.
• High performance 32-bit processor and efficient switched-mode power supply.
• The interior is painted with flocking coating to further reduce the internal reflection.
• The tripod foot is detachable and compatible with Arca Swiss, Markins and Photo Clam ball heads.
• Support Panasonic GH4, GH3, G3, G5, G6, G10, GF3, GF5, GF6, GX1, Olympus E-PL7, Blackmagic Cinema Camera with Micro Four Thirds mount, Blackmagic Pocket Cinema Camera

Compatibility:

The Speed Booster XL 0.64x is similar to the Blackmagic-specific 0.64x BMCC Speed Booster (MB_SPNFG-BMCC-BM1), but has been completely re-designed to meet the following requirements:


– The working distance has increased by 1mm to permit use on the Panasonic GH4 and a number of other Micro Four Thirds cameras without touching the flexible outer cover of the camera’s shutter mechanism.


– The optics are optimized for a standard Micro Four Thirds filter stack thickness of 4mm rather than the 2.4mm found in Blackmagic cameras.


– The image circle diameter has been increased to 21.63mm so that the full 17.3mm × 13mm Four Thirds format is covered. This has been achieved while maintaining unusually high image quality over the 17.4mm image circle used by the Panasonic GH4 in its Cinema 4k video mode.

Although the Speed Booster XL 0.64x has extra clearance compared to the 0.64x BMCC Speed Booster, there are still a number of Micro Four Thirds cameras that are not supported due to mechanical clearance issues.

This is summarized in the table (see download section), which is color-coded so that Green means the camera is supported and Red means the camera is not supported (* = Not yet tested).

Note that many of the Red-coded cameras actually do function, but there is a minor interference with the protective shutter cover.

Although slight contact with the shutter cover appears to have no effect on the functioning or cosmetics of either the camera or the Speed Booster we cannot support these combinations due to possible risk of damage.

Incompatible lenses: Nikkor 21mm f4, Nikon 20/2.8 AI-S
