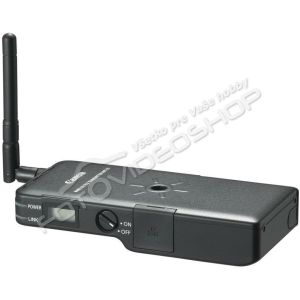

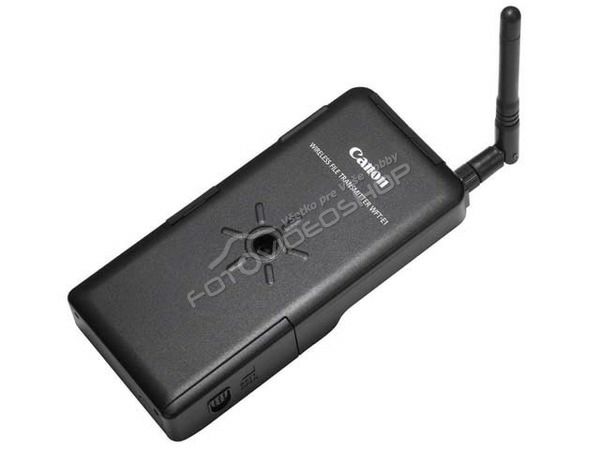

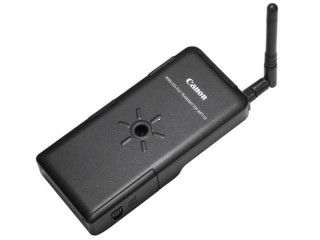

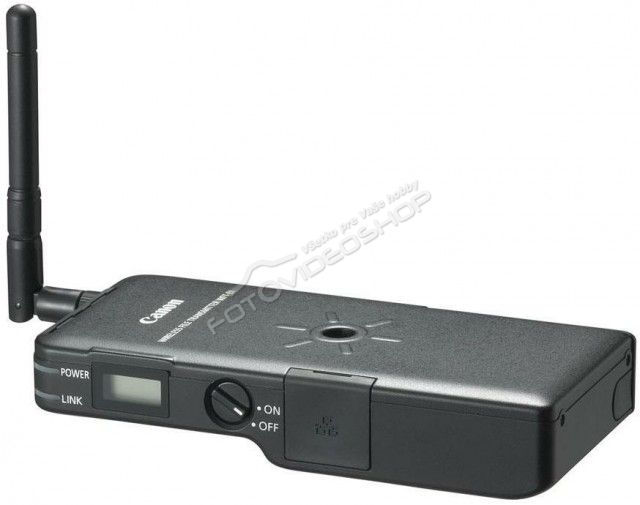

Canon WFT-E1
- Obj. čislo: Canon WFT-E1
- Výrobca: Canon
Bezdrôtový vysielač súborov WFT-E1 umožňuje poslať nasnímané obrázky na FTP server cez bezdrôtové alebo káblové LAN pripojenie. Pracuje so štandardom IEEE 802.11ba IEEE 802.11g bezdrôtovej siete LAN alebo 100 Base-TX Ether LAN káblom.
Špecifikácia
• Type
Type: Image transfer accessory compatible with IEEE 802.11b/IEEE 802.11g
wireless LAN and Ethernet
• Wireless LAN
Standards Compliance: ARIB STD-T66 (data transmission system)
IEEE 802.11b/IEEE 802.11g
Transmission Method: DS-SS modulation (IEEE 802.11b), OFDM modulation (IEEE 802.11g)
Transmission range: Approx. 60 m / 197 ft (with normal antenna)
Approx. 150 m / 492 ft (with extended range antenna)
* Link speed IEEE 802.11b: 1 Mbps, IEEE 802.11g: 6 Mbps
* With no obstructions between the transmitting and receiving antennas
and no radio interference.
* With the high-performance, large antenna attached to the wireless LAN
access point.
Transmission frequency: 2412 MHz - 2472 MHz (Central frequency, total 13 channels)
Link speed: 1/2/5.5/6/9/11/12/18/24/36/48/54 Mbps
Connection method: Infrastructure or ad hoc (IEEE 802.11b only)
Security: Authentication method: Open, shared key, WPA-PSK
Encryption: WEP, TKIP
Power consumption: Max. approx. 3.5 W
• Wired LAN
Standards Compliance: IEEE 802.3u (Ethernet 100BASE-TX)
• Interface
Camera connection: IEEE 1394 port (6-pin), USB 2.0 port (Type A)
Personal computer connection: RJ-45 for Ethernet
• Continuous Image Transfer Time
Wireless LAN: At 20°C / 68°F: Approx. 180 min., At 0°C / 32°F: Approx. 120 min.
Wired LAN: At 20°C / 68°F: Approx. 270 min., At 0°C / 32°F: Approx. 180 min.
• Power Source
Battery: Battery Pack BP-511A/514/511/512
AC power: AC Adapter Kit ACK-E2
• Dimensions and Weight
Dimensions (W x H x D): 140 x 26.3 x 65 mm / 5.5 x 1.0 x 2.6 in
Weight: Approx. 165 g / 5.82 oz (including normal antenna. excluding battery)
• Operating Environment
Working temperature range: 0°C - 45°C / 32°F - 113°F
Working humidity: 85% or less
• Extended Range Antenna ERA-E1 (optional)
Max. diameter x length: 60 x 191 mm / 2.36 x 7.52 in
Weight: Approx. 100 g / 3.53 oz
Cable length: 1.5 m / 4.92 ft
All the specifications above are based on Canon’s testing standards.
The camera’s specifications and physical appearance are subject to change without notice.
