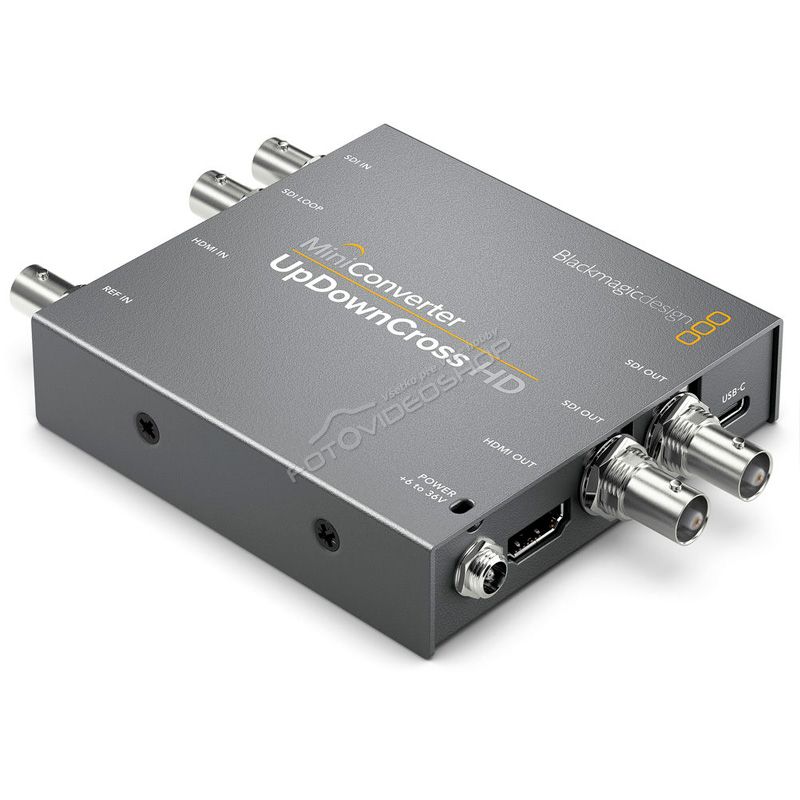

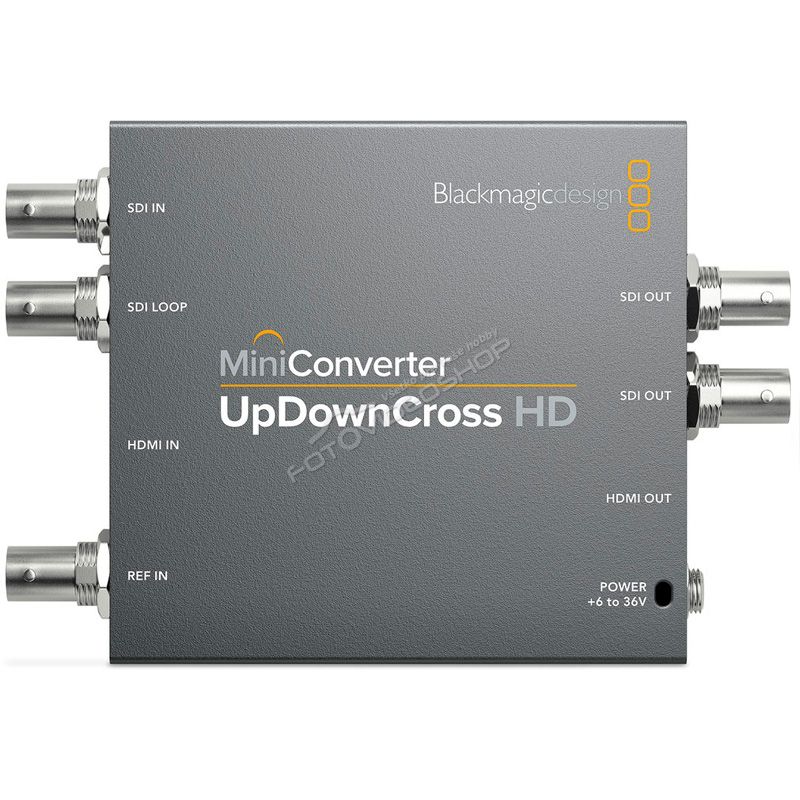

Blackmagic Mini Converter UpDownCross HD
- Obj. čislo: CONVMUDCSTD/HD
- Výrobca: Blackmagic
Mini Converter UpDownCross HD is a full standards converter that lets you convert any SD or HD video format to any other SD or HD video format! You get both SDI and HDMI inputs and outputs, along with reference input for built in re‑sync, high quality Teranex conversion algorithms, automatic audio delay for perfect AV sync, international power supply and more!
Connections
HDMI Video Input: 1 x HDMI type A connector.
SDI Video Outputs: 1 x loop out and 2 x outputs
HDMI Video Output: HDMI type A out. Output supports EDID of the monitor.
SDI Rates: 270Mb, 1.5G, 3G.
Reference Input: Black burst and Tri‑Sync for SD & HD.
Multi Rate Support: Auto detection of HD or standard definition SDI inputs.
Updates and Configuration: USB
Reclocking: Yes
Standards
SD Video Standards: 525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
HDMI Input Video Standards
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M level B, SMPTE 425M level B, ITU‑R BT.656 and ITU‑R BT.601
SDI Video Rates: SDI video inputs are automatically detected between standard definition, high definition and level B 3G‑SDI.
SDI Metadata Support: Timecode and closed captioning.
SDI Video Sampling: 4:2:2
SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision: 4:2:2
SDI Color Space: YUV
SDI Auto Switching: Automatically detects SD, HD or 3G‑SDI.
Špecifikácia Blackmagic Mini Converter UpDownCross HD
| rozmery | 12.3 x 9.2 x 2.3 cm |
|---|---|
| hmotnosť | 326.9 g |
