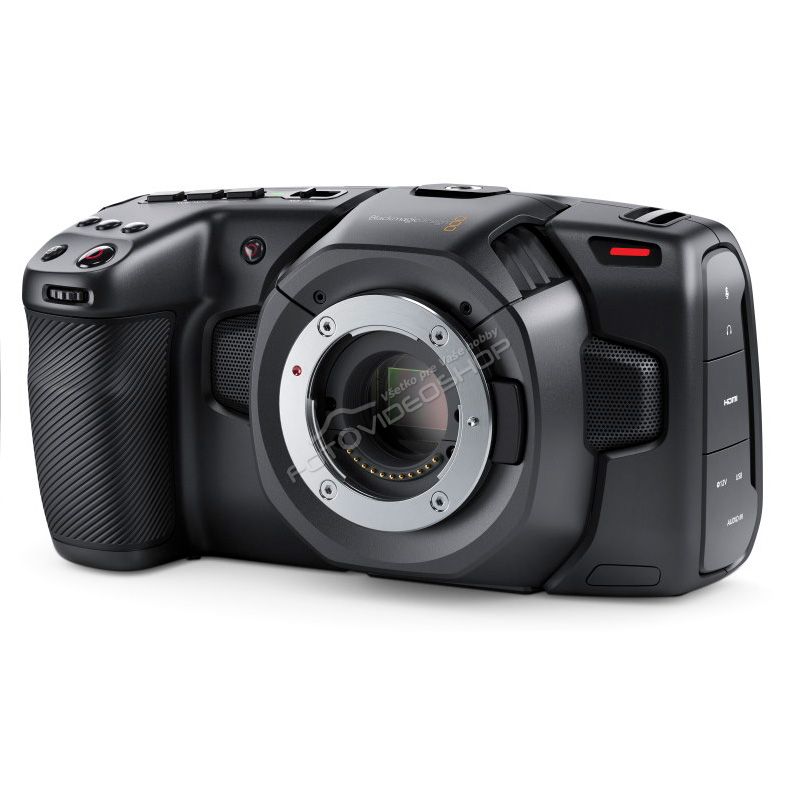

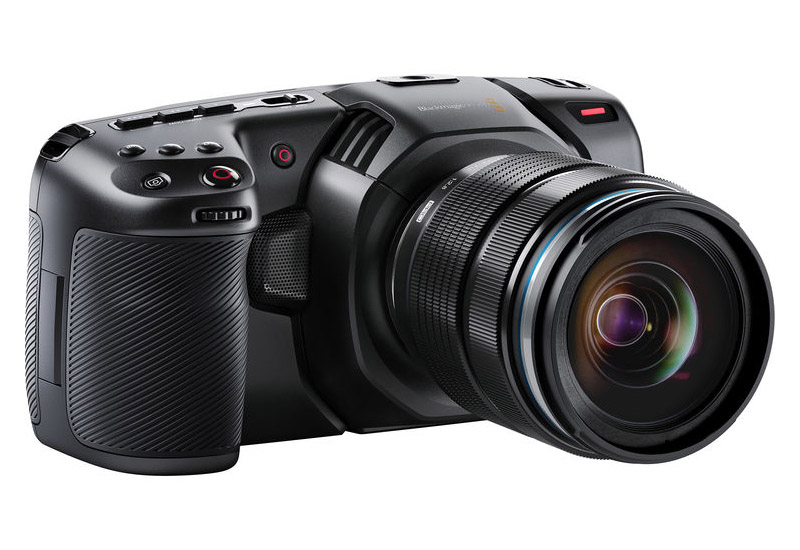

Blackmagic Pocket Cinema Camera 4K

Balenie obsahuje:

• 1x Blackmagic Pocket Cinema Camera 4K
• 1x krytka tela fotoaparátu
• 1x 30W sieťový zdroj s medzinárodnými adaptérmi
• 1x Li-ion batéria typu LP‑E6
• 1x SD karta so softvérom a manuálom EN
• 1x Welcome card.
• 1x aktivačný kľúč na software DaVinci Resolve Studio

Vlastnosti:

• HDR Snímač Micro Four Thirds
• Dynamický rozsah 13 EV
• Záznam 4K 4096 x 2160 60fps (vrátane Cinema DNG), alebo Full HD až 120 fps

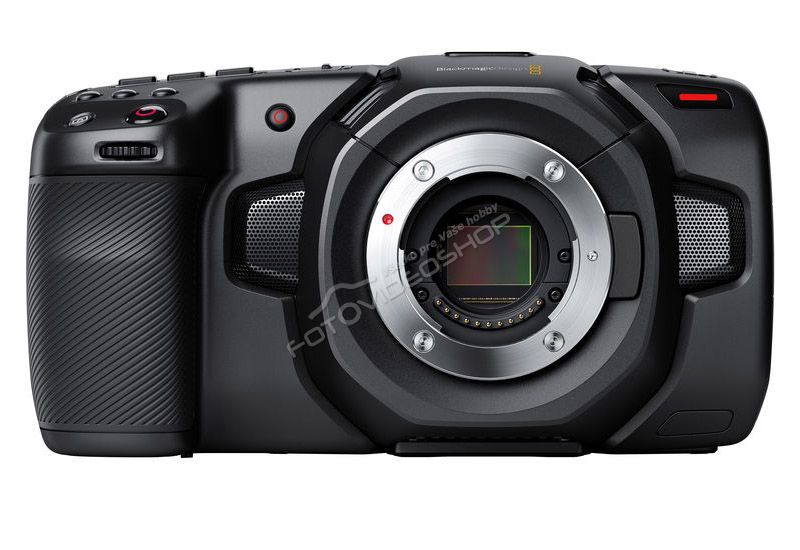

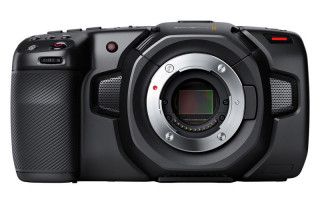

• bajonet pre objektívy Micro Four Thirds (napr. objektívy Panasonic Leica, Olympus...)
• CinemaDNG RAW a ProRes 422 (HQ)
• Citlivosť ISO až 25 600
• zánzam na SD kartu alebo CFast 2.0

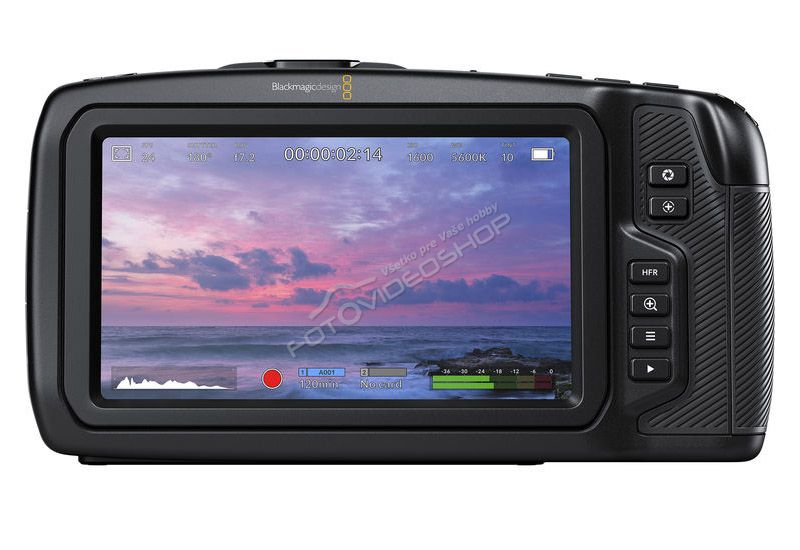

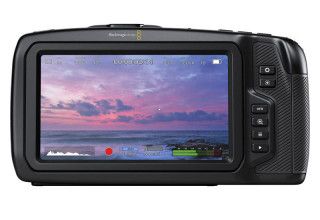

• Veľký 5" dotykový LCD displej
• vymeniteľná batéria
• zabudovaný stereo mikrofón

Senzor s veľkosťou  MFT,  pre maximálne detailné zábery.

Zábery s rozlíšením až 4096 x 2160 DCI 4K, rýchlosťou až 60 snímok za sekundu v rôznych kodekov vrátane CinemaDNG RAW / RAW 3: 1 / Raw 4: 1, a rôzne pomery ProRes 422. Vo vysokom rozlíšení Full HD je k dispozícii pomalá rýchlosť až 120 snímok za sekundu,
Extrémne široký dynamický ozsah 13 EV pre záznam videa vo filmovej kvalite.
Kompatibilný s veľmi kvalitnými objektívmi štandardu Micro Four Thirds. Kompatibilný s inými štandardmi, napr. PL, prostredníctvom adaptérov od tretích výrobcov.

Prvá kamera s možnosťou ukladania dát priamo na externé disky USB-C !

​

Široká škála objektívov od rôznych výrobcov

Používajte ľahké, elektronicky ovládané objektívy MFT (Micro Four Thirds), alebo môžete pripojiť pomocou adaptéra objektívy typu PL, C alebo EF.

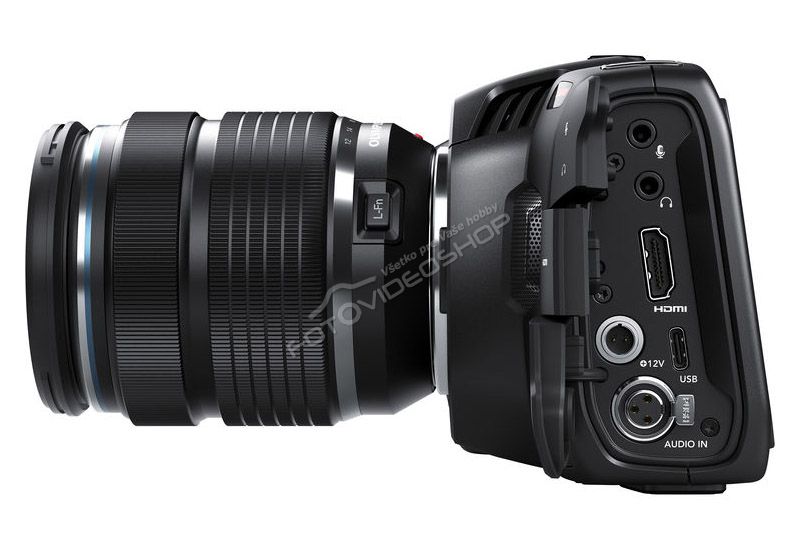

Konektory:

• 1 x výstup HDMI
• 1 x 3-kolíkový konektor Mini XLR na mikrofón / linku (48 V Phantom Power)
• 1 x 3,5 mm Stereo vstup na mikrofón
• 1 x 3,5 mm TRRS Slúchadlá / Mikrofón
• 1 x vstup / výstup USB typu C
• 1 x Bezdrôtové rozhranie Bluetooth

Špecifikácie :

Sensor
18.96mm x 10mm (Four Thirds)

Lens Mount
Active MFT mount.

Lens Control
Iris, focus and zoom on supported lenses.

Dynamic Range
13 Stops.

Shooting Resolutions
4096 x 2160 (4K DCI), 3840 x 2160 (Ultra HD), 1920 x 1080 (HD).

Frame Rates
Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Off-speed frame rates up to 60 fps in 4K DCI, 120 fps in HD windowed.

Focus
Focus button turns on peaking, auto focus available using compatible lenses.

Iris Control
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.

Screen Dimensions
5” 1920 x 1080.

Screen Type
LCD capacitive touchscreen.

Metadata Support
Automatically populated lens data from electronic Micro Four Thirds lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.

Controls
Touchscreen menus on 5 inch screen. 1 x Power Switch, 1 x Record Button, 1 x Stills Button, 1 x Scroll Wheel with push integrated into handgrip, 1 x ISO Button, 1 x White Balance, 1 x Shutter Button, 3 x software configurable Fn buttons, 1 x High Frame Rate (HFR) Button, 1 x Zoom Button, 1 x Menu Button, 1 x Play Button, 1 x Focus Button and 1 x IRIS Button.

CONNECTIONS
Total Video Inputs
None.

Total Video Outputs
1 x HDMI Type A

Analog Audio Inputs
1 x mini XLR analog switchable between mic with phantom power support and line level (up to +14dBu).  1 x 3.5mm Stereo Input. Can also be used for Timecode input.

Analog Audio Outputs
1 x 3.5mm headphone jack.

Computer Interface
USB Type-C for external drive recording, software updates and media download.

AUDIO
Microphone
Integrated stereo microphone.

Built in Speaker
1 x mono speaker.

STANDARDS
SD Video Standards
None.

HD Video Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.

Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.

4K DCI Standards
4KDCIp23.98, 4KDCIp24, 4KDCIp25, 4KDCIp29.97, 4KDCIp30, 4KDCIp50, 4KDCIp59.94, 4KDCIp60.

MEDIA
Media
1 x CFast and 1 x SD UHS-II card slot for CinemaDNG Raw and ProRes Recording. Actual supported codec and frame rates are media dependent.

Media Format
Can format cards to ExFAT for Windows and Mac or HFS+ for Mac (file systems).

SUPPORTED CODECS
Codecs
CinemaDNG RAW, CinemaDNG RAW 3:1, CinemaDNG RAW 4:1, ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime.

STORAGE FEATURES
Storage Type
1 x CFast 2.0. 1 x SD UHS-II card.

Storage Rates
4096 x 2160
CinemaDNG RAW - 272 MB/s CinemaDNG RAW 3:1 - 129 MB/s CinemaDNG RAW 4:1 - 97 MB/s Apple ProRes 422 HQ - 117.88 MB/s Apple ProRes 422 - 78.63 MB/s Apple ProRes 422 LT - 54.63 MB/s Apple ProRes Proxy - 24.25 MB/s

3840 x 2160
CinemaDNG RAW - 255 MB/s CinemaDNG RAW 3:1 - 122 MB/s CinemaDNG RAW 4:1 - 92 MB/s Apple ProRes 422 HQ - 110 MB/s Apple ProRes 422 - 73.6 MB/s Apple ProRes 422 LT - 51 MB/s Apple ProRes Proxy - 22.4 MB/s

1920 x 1080
CinemaDNG RAW - 66 MB/s CinemaDNG RAW 3:1 - 32 MB/s CinemaDNG RAW 4:1 - 24 MB/s Apple ProRes 422 HQ - 27.5 MB/s Apple ProRes 422 - 18.4 MB/s Apple ProRes 422 LT - 12.75 MB/s Apple ProRes Proxy - 5.6 MB/s Storage rates based on 30 frames per second. Recording Formats
Lossless CinemaDNG RAW, RAW 3:1 and RAW 4:1 with film dynamic range at 4096 x 2160, 3840 x 2160 and 1920 x 1080. Apple ProRes 4096 x 2160, 3840 x 2160 and 1920 x 1080 in either film, video, extended video dynamic range or custom 3D LUT.

SOFTWARE
Software Included
Pocket Cinema Camera 4K Operating System. DaVinci Resolve Studio on SD Card. Blackmagic Camera Setup.

Operating Systems
macOS 10.12 Sierra, macOS 10.13 High Sierra or later. Windows 8.1 or Windows 10. POWER REQUIRMENTS
Power Supply
1 x External 12V power supply.

External Power Input
1 x 2-pin locking connector.

Battery Type
Canon LP-E6.

Battery Life
Approximately 60 minutes (recording at 24 fps without any external USB-C device connected)

Power
12V-20V
