DJI Zenmuse XT Thermal Camera
- Obj. čislo: DJI Zenmuse XT Thermal Camera
- Výrobca: DJI

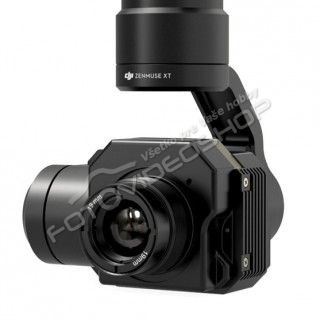

ZENMUSE XT THERMAL CAMERA
Kamera zenmuse XT je určená pre použitie s multikoptérami Inspire 1 alebo Matrice 100

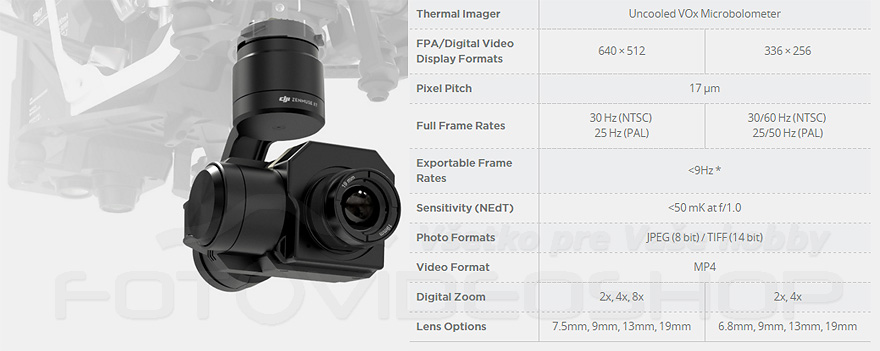

Kamera - parametre:
Thermal Imager | Uncooled VOx Microbolometer |
---|---|
FPA/Digital Video Display Formats | 640 × 512 , 336 × 256 |
Analog Video Display Formats | 720 × 480 (NTSC); 720 × 576 (PAL) |
Pixel Pitch | 17 μm |
Spectral Band | 7.5 - 13.5 μm |
Full Frame Rates |
640 × 512:30 Hz (NTSC) 25 Hz (PAL)
336 × 256:30/60 Hz (NTSC) 25/50 Hz (PAL) |
Exportable Frame Rates | 7.5 Hz NTSC; 8.3 Hz PAL |
Sensitivity (NEdT) | <50 mK at f/1.0 |
Scene Range (High Gain) |
640 × 512:-13° to 275°F (-25° to 135°C)
336 × 256:-13° to 212°F (-25° to 100°C) |
Scene Range (Low Gain) | -40° to 1022°F (-40° to 550°C) |
Spot Meter | Temperatures measured in central 4×4 |
File Storage | Micro SD Card |
Photo Format | JPEG, TIFF |
Video Format | MP4 |
Modely objektívov
6.8 mm, 17μ 336×256 | f/1.4; FoV: 49.1°x37.4°; iFoV: 2.519 mr |
---|---|
7.5 mm, 17μ 640×512 | f/1.4; FoV: 90° x 69°; iFoV: 2.267 mr |
9 mm, 17μ 640×512 | f/1.4; FoV: 69° x 56°; iFoV: 1.889 mr |
9 mm, 17μ 336×256 | f/1.25; FoV: 35° x 27°; iFoV: 1.889 mr |
13 mm, 17μ 640×512 | f/1.25; FoV: 45° x 37°; iFoV: 1.308 mr |
13 mm, 17μ 336×256 | f/1.25; FoV: 25° x 19°; iFoV: 1.308 mr |
19 mm, 17μ 640×512 | f/1.25; FoV: 32° x 26°; iFoV: 0.895 mr |
19 mm, 17μ 336×256 | f/1.25; FoV: 17° x 13°; iFoV: 0.895 mr |
Min Focus Distance |
6.8 mm: 2.3 cm; 7.5 mm: 2.5 cm; 9 mm: 3.2 cm; |
Hyperfocal Distance |
6.8 mm: 1.2 m; 7.5 mm: 1.2 m; 9 mm: 2.1 m; 13 mm: 4.4 m; 19 mm: 9.5 m |
Hyperfocal Depth of Field |
6.8 mm: 0.6 m; 7.5 mm: 0.6 m; 9 mm: 1.1 m; 13 mm: 2.2 m; 19 mm: 4.8 m |
Špecifikácia DJI Zenmuse XT Thermal Camera
rozmery | 103 x 74 x 102 mm |
---|---|
hmotnosť | 270g |
